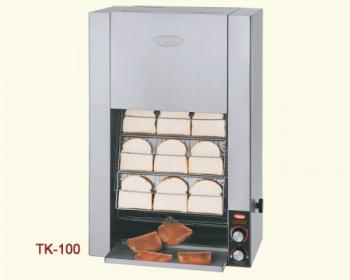

TOAST KING ELECTRIC CONVEYOR TOASTERS TK-100

The Hatco Toast King conveyorized toaster combines fast heat-up, uniform toasting, and dependable

performance to handle peak serving periods.

Toast King features three basket access for fast loading and a vented top to keep heat away from the operator.

Hatco toasters utilizes conveyor speed, not temperature to determine toasting color.

This method allows for instant adjustment of toasting time to match the bread product being toasted.

FLEXIBILITY

Models TK-72 and TK-100 are bread or bun toasters that feature instant color control on every toasted product

– even frozen waffles and French toast.

Toast King toasts buns up to 5 1⁄2" (140 mm)wide and "Texas Toast" up to 1 1⁄4"(32 mm) thick.

Model TK-135B is perfect for high-speed bun-only operations.

Buns come out tender, uncrushed, and toasted to a crisp golden brown.

Heats the entire bun, while toasting only the cut side.

Model TK-155B is specially developed for toasting the 3-part hamburger bun.

Exclusive heat zones allow it to toast both sides of the center part of a 3-part bun

and only the cut side of the top and bottom portion – all in one operation.

QUALITY

The following features assure the finest performance for years to come:

• Capacities of up to 720 or 1550 slices per hour.

• Select the degree of golden brown color desired and Hatco's color sensing system holds it automatically,

slice after slice.

• All Toast King models include a heated toast storage area designed to maintain serving temperatures

and prevent condensation.

• Multiple heating elements assure continuous toasting and are guaranteed against burnout and

breakage for two years.

• Designed to maximize operating efficiency and lower costs, Toast Kingis fully insulated.

The fiberglass heat barrier reflects heat back into the toasting area.

• Toast King features a power-saving thermostat for energy savings during non-peak times.

• Each Toast King model features a speed control, manual advance,and a 4' (1219 mm) cord with plug.

DIMENSIONS

Basket size:

TK-100, -135B, -155B: 141⁄2"W x 45⁄8"H (368 x 117 mm).

Tray extends: 31⁄2" (89 mm).Maximum Bread Product Thickness: 11⁄4" (32 mm).

VOLTAGE

208 and 240 volts, 60 Hz, single phase, standard. Export voltages available.

CORD LOCATION

Bottom left side on back of unit.

AMP RATING

TK-100 208V: 24.0 amps

240V: 21.0 amps

OPTIONS (NOT FOR RETROFIT)

* Control Cover

ACCESSORIES

* Baskets for Jumbo 5 1/2" (140 mm) Buns (9 per Toaster)

* 4" (102 mm) Adjustable Legs (4)

* 20 Amp Receptacle, 250V (NEMA 6-20R)

* 30 Amp Receptacle, 250V (NEMA 6-30R)

PRODUCT SPECS

Conveyor Toaster

The electric Conveyor Toaster shall be a Hatco Model.

The toaster shall have the capacity to toast up to ....pieces per minute and it shall be rated at

....kW, ....volts, single phase.

The toaster shall be of stainless steel design and shall include a front mounted control panel with

a toast selector knob, variable speed control knob, and a toast collector pan.

The toaster will have multiple metal sheathed heating elements and an impedance protected motor.

It shall be complete with factory attached UL listed 4' (1219 mm) cord and plug.
