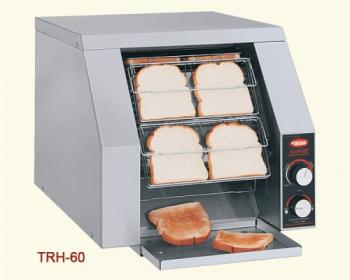

TOAST-RITE ELECTRIC CONVEYOR TOASTERS TRH-60

The Hatco Toast-Rite is a perfect alternative to pop-ups.

Toast-Rite features instant color control on every toasted product.

Conveyor speed, not temperature, determines toast color.

You get faster, more uniform results slice after slice.

Multiple heating elements assure continuous toasting.

If an element should fail, Toast-Rite will keep operating at a slightly lower production rate.

FLEXIBILITY

All Hatco Toast-Ritemodels include a heated toast storage area that holds toast at serving temperatures

and eliminates condensation, preventing soggy toast.

Toast-Rite toasts everything from bread to buns, bagels to English muffins, ... even frozen waffles.

Every Toast-Ritemodel features a speed control, manual advance (can be ordered without), and factory

attached 4' (1219mm) cord and plug as standard equipment.

All heating elements are guaranteed against burnout and breakage for two years.

QUALITY

The following features assure the finest performance for years to come:

• Capacities of up to 8/min = 480 slices perhour or 10/min = 600 slices per hour.

• Select the degree of golden brown color desired and Hatco's color sensing system holds it

automatically, slice after slice.

• All Toast-Ritemodels include a heated toast storage area designed to maintain serving temperatures

and prevent condensation.

• Stainless steel construction is built for years of trouble-free service.

• Multiple heating elements assure continuous toasting and are guaranteed against burnout

and breakage for two years.

• Designed to maximize operating efficiency and lower costs, Toast-Rite is fully insulated.

The fiberglass heat barrier reflects heat back into the toasting area.

• Toast-Rite features a power saving thermostat for energy savings during non-peak times.

• Each Toast-Rite model features a speed control, manual advance, and a 4' (1219mm)cord with plug.

DIMENSIONS

Tray Extends 4.42" (112 mm).

Basket Size: 10" x 4.63" (254 x 117 mm).

MaximumBread Product Thickness: 1.25" (32 mm).

VOLTAGE

208 and 240 volts, 60 Hz, single phase (use NEMA 6-20P,model TRH-60, 208 volts, use NEMA 6-30P for Canada).

Model TRH-50 available in 120 volts – with a NEMA 5-30P plug. Export voltages available.

CORD LOCATION

Bottom right of center on back of unit.

AMP RATING

Model 120V 208V 240VTRH-50

*22.8 amps

* 13.2 amps

* 11.4 amps

OPTIONS (NOT FOR RETROFIT)

* Control Cover

ACCESSORIES

* 4" (102 mm) Adjustable Legs (4)

* 20 Amp Receptacle, 250V (NEMA 6-20R)

* 30 Amp Receptacle, 125V (NEMA 5-30R)

* 30 Amp Receptacle, 250V (NEMA 6-30R)

PRODUCT SPECS

Conveyor Toaster

The electric Conveyor Toaster shall be a Hatco Model.

With 24/7 parts and service assistance (U.S. and Canada only), the toaster shall have the capacity

to toast up to ... pieces per minute and it shall be rated at ... kW, ... volts, single phase.

The toaster shall be of stainless steel design and shall include a front mounted control panel

with a toast selector knob, variable speed controlknob, and a toast collector pan.

The toaster will have multiple metal sheathed heating elements and an impedance protected motor.

It shall be complete with factory attached UL listed 4' (1219mm) cord and plug.
