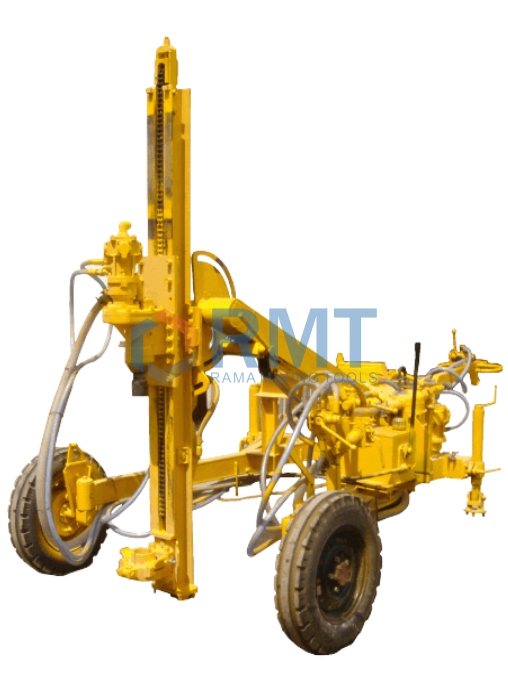

RMT 25 (DTH) - Wagon Drill
Quantity : 1 Price : 5000-11000$
The DTH Hammer version of RMT Wagon Drill is equipped with powerful piston type air motor (BBR -4 type) which is suitable for DTH hammers of 3” and 4”. Possible drill hole sizes are 85 to 130mm and drilling depth up to 40 meters. With a quick conversion kit, the DTH version can be converted to the “Top Hammer Version” of Wagon Drill.
| Model # | RMT 25 (DTH) | |
| Version | Down the Hole Hammer (DTH) | |
| Driving Force | Piston type Rotation Air Motor (Type BBR-4) | |
| Drilling Depth | 40 meter (131 feet) | |
| Hole Diameter | 85 - 130 mm | 3.34" - 5.12" |
| Drill Tube Diameter | 70 / 76 mm | |
| Drill Tube Length | 1.20 Meter, 2.50 Meter, 3 Meter | |
| Operating Pressure | 12 bar max. | |
| Maximum Torque | 900 Nm | |
| Air Consumption | 450 cfm at 10.5 bar | |
| Suitable hammer | 3", 4" Hammer | |
| Details of Feed and boom | As below | |
| Feed Type | Chain Drive | |
| Feed Beam Length | 5430 mm, 4425 mm, 2825 mm | |
| Travel Length | 3940 mm, 2200 mm, 1500 mm | |
| Feed Force | 8kN | 1.8 lb |
| Boom type | Single section hand operated Hydraulic cylinder | |
| Details of Carrier | Details in attached brochure | |
| Transport Dimensions | Details in attached brochure | |
Contact : Amit Miharia, 9836754560
