HWIR400F-2 Double outlet hot air blower Industrial hot air blower
Quantity : 100 Price : 755 dollars
HWIR400F-2 double outlet hot air blower is suitable for heating, drying and dehumidification in food, pharmaceutical, electronic, printing, spraying, cleaning and other industries.It has high thermal efficiency,so it can work continuously without interruption,it is durable and has accurate temperature control.It can work continuously for 24 hours and Its power can be adjusted.It is heated by double air outlets, and is especially suitable for installing on the assembly line.
Main features
Temperature control system
The temperature is controlled by PID/SSR, and the control precision is high, reflecting sensitivity.
Double layer heat insulation
Design of sturdy double stainless steel shell,it is safe and reliable when used,can keep high temperature work for a long time. Digital regulation can be carried out to adjust the temperature according to the needs.Power output stability.
High heat exchange efficiency
Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.
Manual adjustment of air volume
This machine is equipped with medium pressure fan, and the air inlet port has air volume adjusting valve. It can adjust the intake volume according to the need.
Digital display temperature regulation
The outlet is equipped with a temperature sensor, which can adjust the temperature according to the requirements, and the maximum use temperature is 350 ℃. The accuracy of temperature control is + 1℃.
Security
It has overheating overload protection, power cut protection device, fully guarantee the safety of the equipment, do not produce exhaust gas, and meet the environmental protection.
classification |
Item |
parameter |
size |
Overall machine size |

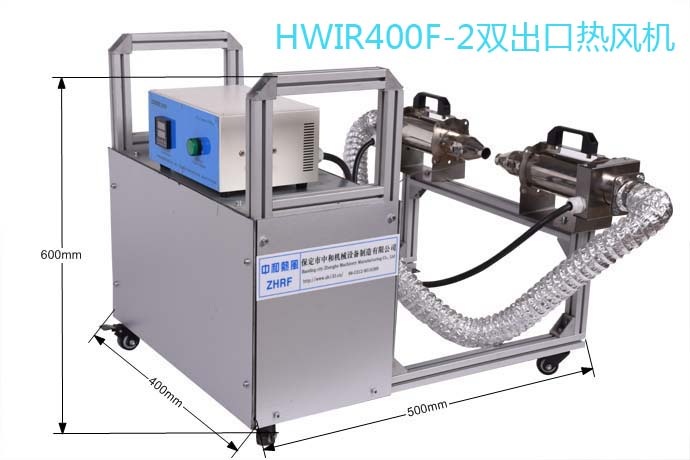

See picture |
The size of the air outlet |
The diameter is 50mm or 25mm can be selected according to the needs |
|
Heat preservation layer |
Material |
double insulation |
heater |
Name |
Resistance heating |
heat energy |
2×2KW ( It is adjustable ) |
|
Temperature Control Method |
Intelligent,temperature adjustment |
|
Service life of heated wire |
100000h |
|
temperature control |
Temperature-controlled meter |
digital control |
control accuracy |
±2℃ |
|
blower |
power |
250W Medium pressure blower |
Maximum air volume |
450m3/h |
|
Total pressure |
1200pa |
|
Hot air exit |
Quantity of hot-blast outlet |
2 |
Air outlet direction |
Arbitrary adjustment |
|
Maximum air flow outlet temperature rise |
>100℃ |
|
Power Supply |
Power demand |
220V |
Overall machine power |
4300W |
|
weight |
Overall machine weight |
23KG |
Security |
Safety grade |
Earth wire |
Contact : ying shao, +863128016369
