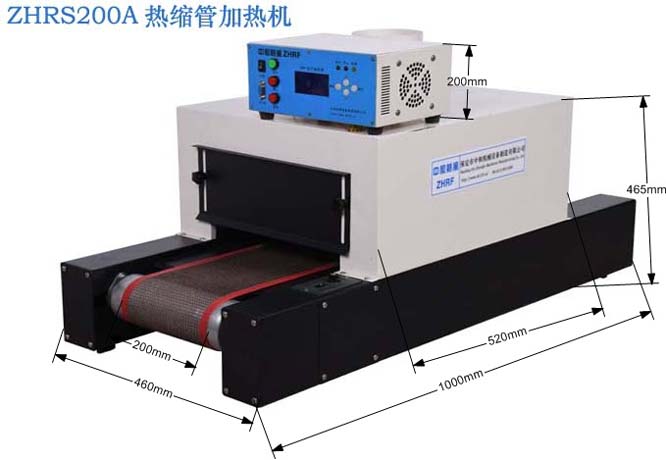

ZHRS200A heat shrink tube heating machine Heat shrinkable tube heater

ZHRS200A,A one side heat shrinkable tube heater with intelligent temperature adjustment (intelligent digital temperature control, use a liquid crystal screen to display the working state, independent control system) is suitable for heating shrinkage of heat shrinkable tubes in wire harness processing enterprises, adjusting temperature according to the requirements of the production process, contraction time is short,can heat shrinkable tubes for any length, can work continuously for 24 hours without interruption, there is an omni-directional reflective thermal material in it, so that the heat shrink pipe is heated evenly.

Apply to：

1. Connection and contraction of PE heat shrinkable tube, PVC heat shrinkable tube and double wall heat shrinkable tube with glue.
2. Thermal shrinkage of PVC pipe.

Thermal contraction of capacitors, batteries, wire terminals, heat shrinkable sleeves / membranes, etc.

Characteristics:

Equipment composition

Transmission system + heating system + control system

Heat insulation design of heating zone

The shell of the heating area is designed with double layer heat insulation, which makes the inside and outside temperature separate, that is to save energy and protect the working environment.

Omni-directional heat reflecting inner wall

The heat reflecting inner wall in the heating box ensures the uniform heating effect of the heating.

Adjustable Import and export height

The conveyor belt heating box is completely closed, the input and output end of the heating box has a sliding door that can rise and fall, effectively prevent the heat source from leakage, protect the working environment, energy conservation, and increase the machine's ability to use one machine in many different jobs.

Adjustable infrared heating pipe height

The infrared heating tube can adjust the height quickly. Ensure repeatability of distance between light source and conveyor belt.

Intelligent control system

LCD

Deviced friendly man-machine interface, menu operation of liquid crystal Chinese characters,simple and convenient manipulation,Real-time display of work status.

Open machine presupposition function

The machine can set the output temperature, the working time, etc.

Intelligent power regulation

According to the seted up temperature, the heating system intelligently recognizes the output power, and the output is stable.

Temperature control system

The power output is controlled by digital stepless mediation, the temperature is controlled, the output is stable, and the precision of temperature control is 2.

Parameter memory function

The power, the temperature, the working hours and other parameters of the hot air fan have memory function.
