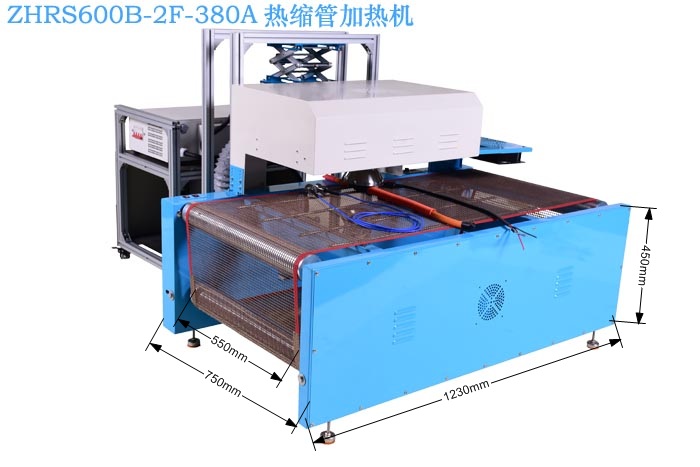

ZHRS600B-2F-380 Precision heat shrinkable tube heater High temperature heat shrinkable...

ZHRS600B-2F-380 is a precision heat shrinkable tube heating machine,designed for mass production.It can work for 24 hours in a row,process special products.The heating machine and the conveyer are used together to realize the precise heating of the heat shrinkable tube without damaging the wire. By manually adjusting the speed, the speed of the conveyor belt is kept uniform. The vertical distance and the parallel distance of the heating port to the conveyor belt can be adjusted, and the heat shrinkable tube of different size components can be heated.It is suitable for users with accurate heating requirements for wire harness,can also be applied to heat high temperature Teflon heat shrinkable tubes or large diameter and long heat shrinkable tubes.

Characteristics:

One side or double side heating is optional

According to the heating requirements of the heat shrinkable tube, it is free to choose one side or two side heating.

The heating zone width, heating distance and left and right position can be adjusted.Accurate heating does not hurt the wire

The vertical distance and parallel distance of the heating port to the conveyor belt can be adjusted, and the heat shrinkable tube of different size components can be heated,save energy as much as possible and ensure the wire do not be hurt.

Heat insulation of heating machine

Double insulation, strong machine shell makes the machine safe and reliable, and can work in high temperature for a long time.

LCD

Deviced friendly man-machine interface, menu operation of liquid crystal Chinese characters,simple and convenient manipulation,Real-time display of work status.

Open machine presupposition function

The machine can set the speed of the fan, the output temperature, the working time, etc.

Temperature control system (room temperature ~460 ℃)

A digital stepless mediation method is adopted to control the power output, control the temperature, stabilize the output, and control the temperature accuracy by + 2 degrees Celsius.

Fan delay function

In order to protect the heating core and prolong the service life of the heating core, the machine has a time delay function of downtime and blow drying. After the machine stops working, the hair dryer will blow off for a minute before it can be shut down.

High heat exchange efficiency

Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.The heating core of the heater is designed to use the lower surface power density, and the heating temperature in the unit area is low, so the electric heat wire has a long service life.

Parameter memory function

The power, temperature, fan speed and other parameters of the hot air fan have memory function.

Air flow regulating valve

The air inlet of the blower is equipped with a manual air volume regulating valve, and the air volume can be adjusted according to the needs.

Security

It has overheating overload protection, power cut protection device, emergency stop switch, phase sequence protection, fully guarantee the safety of the equipment,do not produce exhaust gas, and meet the environmental protection,can keep operating 24 hours a day without stopping all year round.

Selection of assembly auxiliary conveyor

This machine is work in with auxiliary conveyors, and can be applied to heat shrinkable tubes with arbitrary specifications.
