Serial WIFI Converter

Introduction of Serial WIFI Converter

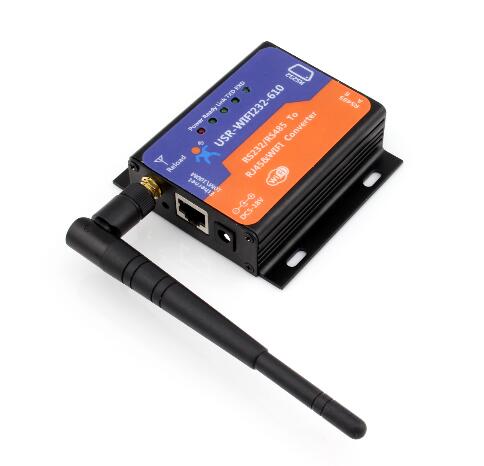

USR-WIFI232-610-V2 is a wireless serial WIFI converter, which is used for project of RS232/RS485 serial equipment to WIFI or Ethernet networking. It can be controlled by mobile phone or laptops, also can be connected to the remote server.

Features of Serial WIFI Converter

• Hardware flow control (RTS/CTS) RS232 interface, male mouth(needle) consistent with computer pin definition
• DC5~18V wide voltage input, can provide 2A current MP1482DS DCDC power supply chip, keep system reliability.
• RS232 RS485 automatic switching
• RJ45 network connection, support wired Ethernet transmission
• Reload button, do not worry incorrect settings (in working status, press the button 3-5s then it load to default settings and automatic restart)
• Rich status indicator light: Power Ready Link RXD TXD
• Support IEEE802.11b/g/n wireless standards
• Support TCP/IP/UDP network protocols
• Support RS232 RS384 data interface
• Support work as STA/AP/AP+STA mode
• Support router/bridge Mode networking
• Support external antenna
• Support transparent transmission mode
• Support AT+ instruction set for configuration
• Support friendly web configuration page
• Support palmodic signal
• Single 5-18V power supply
• Small size: 84 x 84x25mm
• FCC/CE/RoHS/TELEC certificated

Function comparison of Serial WIFI Converter

Application Field of Serial WIFI Converter

• Serial RS232/RS485 to Wifi or Ethernet
• WiFi remote control and monitoring, TCP/IP and WiFi coprocessor
• WiFi remote control toy such as aircraft and cars
• WiFi Internet radio, camera, digital photo frame
• Medical instrument, data acquisition, handheld device
• WiFi fatness testing machine, smart card terminal, Smart Home
• Instrument, equipment parameter monitoring, wireless POS machine
• Modern agriculture, military field and other wireless related secondary development applications
