DTR/DSR Serial Ethernet Converter, Ethernet to Serial
Quantity : 2122 Price : 25-99
DTR/DSR Serial Ethernet Converter Introduction

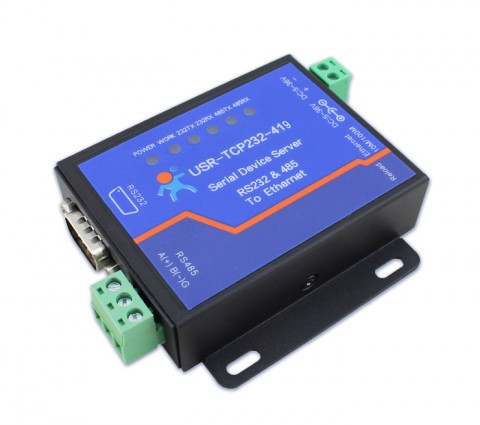

USR-TCP232-419 DTR/DSR Serial Ethernet converter supports DTR/DSR flow control which is developed base on the top-item [USR-TCP232-410s].
Please refer to the user guide of USR-TCP232-410s: http://www.usriot.com/download/M4/USR-TCP232-410S_User_Manual_V1.0.0.pdf
DTR/DSR Serial Port Feature ( The only difference with USR-TCP232-410s)
DB9 Male RS232 Port: RTS/CTS, DTR/DSR
Character for DTR/DSR Serial Ethernet Converter
| M4 Series | Feature |
| Industrial Solution | TI Cortex M4 Solution, work temp at -40~85C |
| Work Mode | TCP Server/ TCP client/ UDP Server/UDP Client/ HTTPD Client |
| Advanced Character | -Modify MAC -Network Printing -Web Server: Web socket, Web to Serial |
| Flow Control | Software: XON/XOFF |
| Serial Signal | RS232: TX/RX, CTS/RTS, DTR/DSR RS485: A/B/G |
| Serial Port | RS232/RS485 |
| Modbus Gateway | Modbus TCP to Modbus RTU in bi-directional Modbus Polling |
| Power Supply | DC/Terminal type 5V~36V |
| Protect | Surge Protection, ESD 2KV, for more harsh industrial environment |
| Built-in web page | Customized web page is acceptable |
| Certification | CE/FCC/RoHs/WEEE |
Industrial data transmission, industrial automationDTR/DSR Serial Ethernet Converter Application Field
- security and protection monitoring, public security
- Smart home, power control, environmental monitoring, intelligent agriculture
- Door check on work attendance system, POS system, rice selling system
- Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
Contact : IOT USR, +86 531 88826739
