Hevc hotel IPTV streaming encoder

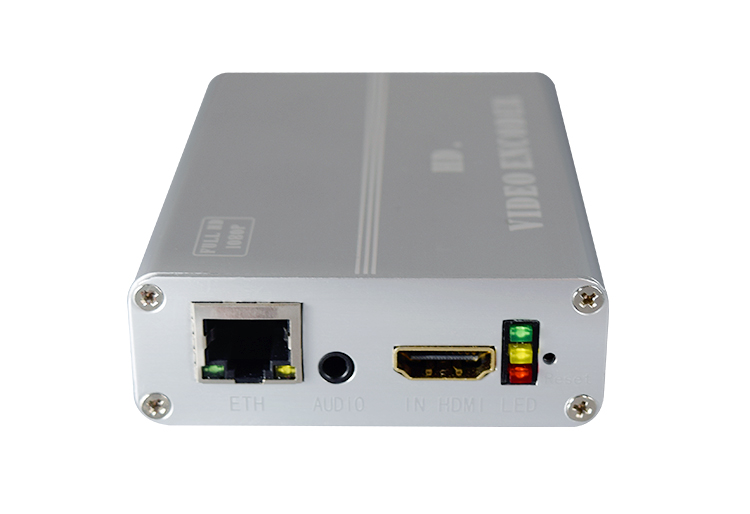

H8118 Hevc HDMI over ip encoder

Product Description
H8118 Hevc HDMI over ip encoderr is a professional audio and video encoding products, which support 1-channel audio and video capture features high-definition HDMI, 1 3.5MM independent audio interface acquisition, Triple streaming H.265/ H.264 encoded output format, audio MP3, AAC, G711 formats. It could be freely adjusted according to the need. The device is highly integrated, cost-effective. Support RTSP/ RTP/ RTMP/ HTTP/ UDP/ ONVIF/ HLS protocols etc. It is easy to install, plug-play, and there is no computer hardware compatibility issues.

Key features
Support resolution 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i (customize)
Support HDMI input，H.265 The latest architecture
Supports WINDOWS and LINUX etc
Support multiple devices display on a computer at the same time
Support RTSP/ RTP/ RTMP/ HTTP/ UDP/ ONVIF/ HLS unicast and multicast protocol (RTMP support adding users and changing passwords),
Support Main TS stream and the sub TS stream use in different network protocols for transmission,H.264/H.265
Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio )
Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, H.265: audio MP3, AAC, sampling rate: 32000,44100, etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
Video packaging: A mode: FFMPEG, B mode: VLC
Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
Support OSD, support OSD rolling, images superimposing, support adding LOGO ,Characters and symbols;
Adjustable coordinates: 1920x1080; The font size resolution: 8 to 72.
Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
Support coding without video signal;
Complete the setting effect immediately, don't need to restart
Support one-key recovery of the default configuration
Support set-top box decoder
The low power consumption design
