Taiwan Spindle Quality CNC Vertical turning Lathe VTL Machine
Details
Retail Retail wholesale Wholesale
China For the individual
For the individual

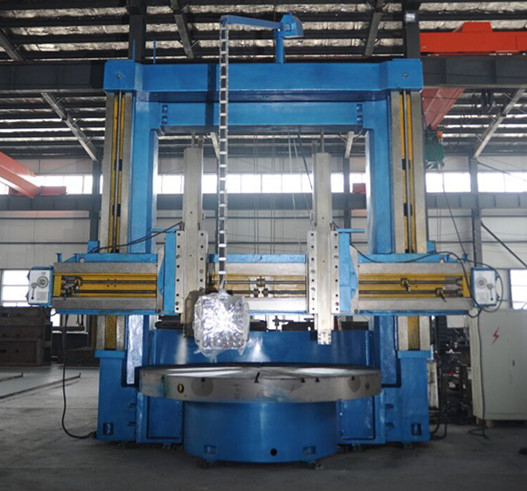

Taiwan Spindle Quality CNC Vertical turning Lathe VTL Machine

Quantity : 1 SET   Price : 70000USD

Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: CNC lathe ,Vertical lathe ,Heavy duty horizontal lathe machine, Gantry milling machine, Plano miller,boring milling machine and roll turning lathe etc. If interested, feel free to contact us.

Sales manager by Abby Shang

Vertical Lathe machine model:
C5225/C5232/C5240/C5250/C5263
Maximum turning diameter: 2500/3150/4000/5000/6300mm
Table diameter : 2500/3150/4000/5000/6300 mm
Technical specification of Taiwan Spindle Quality CNC Vertical Lathe Machine C5232
1 Maximum turning diameter 3150 mm
2 Maximum Height of workpiece 1600/2000/2200/2500/3000 mm
3 Maximum Weight of workpiece 10/20 t
4 Table diameter 2830 mm
5 Speed range of table 2-63 r/min
6 Maximum torque 63 KN/min
7 Vertical Travel of tool post 1000/1250 mm
8 Horizontal travel of tool post 1735 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 55 kw
11 Machine weight About 36-50 t
Location : No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County, , 053700. Hengshui City,
Contact : Shang Abby , 0086 18330891102
